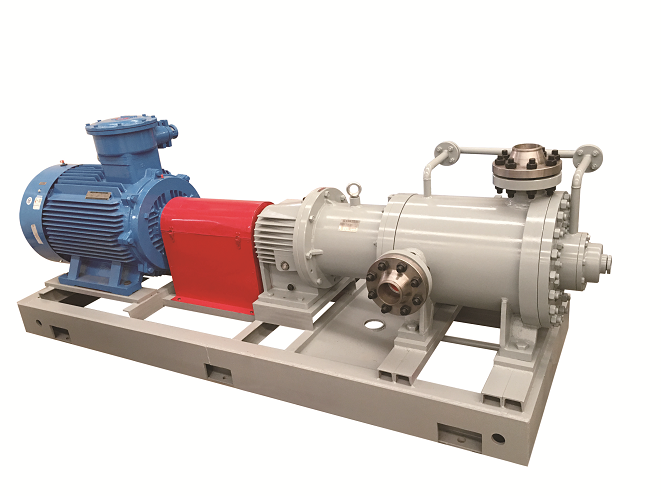

DGC型泵是双层壳体磁力驱动多级离心泵。该产品旨在解决小流量，高扬程的流体输送问题。该产品结构设计、水力设计及磁路设计先进新颖，技术达到国内领先水平。首家成功地将磁力驱动技术应用于多级离心泵，解决了大功率、大间隙磁路设计问题，居国内领先地位。同时解决了高工作压力下多级泵的轴向力平衡及静密封问题，磁力驱动联轴器与轴承失效监控装置的配合，更保障了泵长期安全可靠运行。

  DGC pump is a magnetic driven multi-stage centrifugal pump with double-layer volute. This product is designed to convey fluid at low flow with high head. This product features advanced and novel structure design, hydraulic design and magnetic path design, with technology at the leading level in China. Highland is the first to successfully apply the magnetic driving technology in multi-stage centrifugal pumps, solving the question of high power and large gap magnetic path design, at the leading level in China. It also solved issues of axial force balance of multi-stage pumps at high working pressure and static sealing, and the matching of magnetic driving coupling and bearing failure monitoring device, further ensuring the long-term safe and reliable operation of pumps.

1．卧式径向剖分式多级泵，双层壳体，BB5结构。

2．大功率磁力驱动、全密封、无泄漏，无污染。

3．双层壳体保护，较好地解决了泵在高温工况下的热冲击和高压时的翘曲变形，绝对安全无泄漏。

4．根据介质温度选用底脚支承（基本型）和中心支承（高温型）。

5．轴向力由平衡鼓、平衡盘、滑动止推轴承和磁传动器藕合力协调平衡。

6．泵的入口可水平、垂直或侧向任意角度布置，泵的出口可垂直或侧向任意角度布置。

7．可选用与电机直连或带膜片联轴器两种结构。

8．过流部件的材质可根据所输送物料的特性，做出相应的选择。
